Founded in July 1947, with 60 years of experience in diesel engine manufacturing. Shanghai Diesel Engine Co., Ltd. (SDE) is one of technical leaders in China internal-combustion engine industry. Devoting to the research, production and manufacture of the professional diesel engines, its engine possesses the excellent drive power, economic efficiency and reliability, easy operation and maintenance.
SDE 135 series diesel engines are the earliest and using widely models in China. 135 diesel generator set has mature technology, sufficient accessories and different ranges of power.

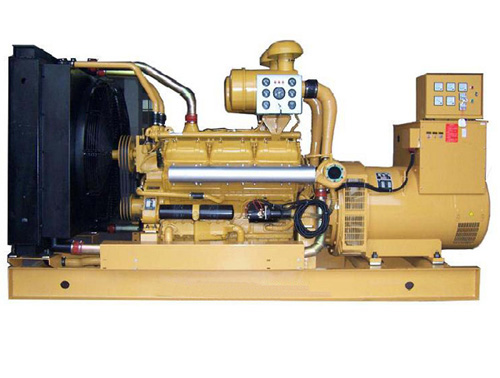

YILONG-SHANGCHAI generator set, selects 135 series engine from SDE Company. It is one of our main products. Including alternator, base frame, connecting flange, fuel tank, and control system,etc..

Alternator
Engine can be coupled with yl series A.C.synchronous brushless alternator( new-style designed by ourselves,with update international technology). It can also be matched with STAMFORD,LEORY SOMER, MARATHON alternator according to customers’ demand.
Gensets can be open type or soundproof (silent) type.

Gensets’ electric performance
Gensets compliance with all main standards, such as :GB/T2820,ISO8528,IEC34,VDE0875-N
Prime output power: 50kw-600 kw(62.5kva-750kva)
Rated voltage:400/230v, 440/254v, 220/127v, etc.
Phase/connecting method: 3 phase 4wire/Y type connection
Rated frequency: 50/60hz
Rated speed: 1500/1800rpm
Excited type: Brushless, self excited or PMG
Insulation: Class H
Protection: IP21～IP23
Voltage regulation: AVR automatic control
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40℃
Relative air humidity: ≤ 90%

Controller system
1.Standard control panel, including voltmeter, fequency meter, ampere meter,water temperature gauge, oil temperature gauge, oil pressure gauge, AMF control module,oil level indicator, emergency button,preheating button, battery voltage gauge, hours running counter for protection and tranfering.
2.It can be with ATS electric control cabinet, including circuit breaker, LCD or LED auto controller, indicating lamp, transfer switch,etc.. Automatic transfer switch (ATS) uses update technology, which can be automatic control for on-off electricity, remote monitoring, automatic parallel operation,etc…
